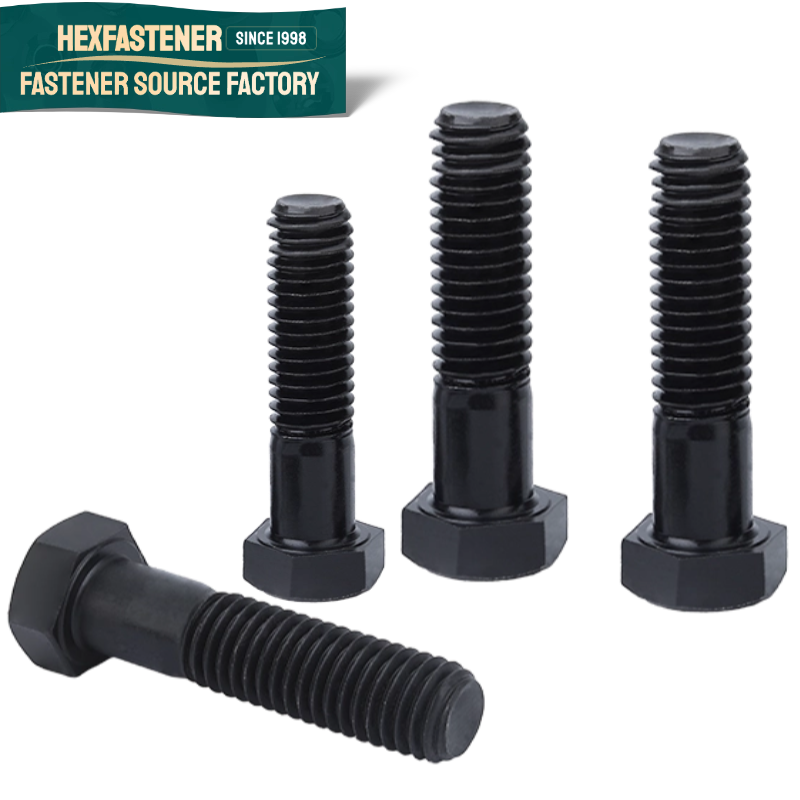

Heavy Hex Bolts

¥0.00
Inquiry

amazon paymentsamerican expressapple paygoogle payjcbmasterpaypalshopify payvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Headed Bolts Heavy Hex Bolts
Description

Heavy Hex Bolts Dimensions per ASME B18.2.1

Several ASTM specifications require a hex head that is larger than a standard (finished) hex head. These specifications include: A193, A320 and A307B. Although A325 and A490 bolts also require a heavy hex head, please refer to Structural Bolts for dimensional specifications, since these bolts have shorter thread lengths than standard heavy hex bolts.

Applications

Heavy hex bolts can be used for many different applications that include fastening wood, steel, and other construction materials for projects such as docks, bridges, highway structures, and buildings. Heavy hex bolts with forged heads are also commonly used as headed anchor bolts.

Manufacturing

Portland Bolt manufactures heavy hex bolts from 1/2″ diameter through 2-1/2″ diameter in most ASTM, AASHTO, and SAE specifications. Special tooling can be created to produce nonstandard head dimensions or bolt heads with your company’s name and/or logo.

  • Cutting
  • Heading
  • Threading
  • Hot-Dip Galvanizing

Stock

Portland Bolt stocks A325 Heavy Hex Structural Bolts.

Standard Thread Lengths

Bolt lengths ≤ 6″: Thread length = (2 X diameter) + 1/4″
Bolt lengths > 6″: Thread length = (2 X diameter) + 1/2″

Heavy Hex Dimensions

Click table to show drawing
Bolt Diameter D F C H
Body Diameter Width Across Flats Width Across Corners Height
Max Basic Max Min Max Min Basic Max Min
1⁄2 0.515 7⁄8 0.875 0.850 1.010 0.969 11⁄32 0.364 0.302
5⁄8 0.642 11⁄16 1.062 1.031 1.227 1.175 27⁄64 0.444 0.378
3⁄4 0.768 11⁄4 1.250 1.212 1.443 1.383 1⁄2 0.524 0.455
7⁄8 0.895 17⁄16 1.438 1.394 1.660 1.589 37⁄64 0.604 0.531
1 1.022 15⁄8 1.625 1.575 1.876 1.796 43⁄64 0.700 0.591
11⁄8 1.149 113⁄16 1.812 1.756 2.093 2.002 3⁄4 0.780 0.658
11⁄4 1.277 2 2.00 1.938 2.309 2.209 27⁄32 0.876 0.749
13⁄8 1.404 23⁄16 2.188 2.119 2.526 2.416 29⁄32 0.940 0.810
11⁄2 1.531 23⁄8 2.375 2.300 2.742 2.622 1 1.036 0.902
15⁄8 1.658 29⁄16 2.562 2.481 2.959 2.829 13⁄32 1.116 0.978
13⁄4 1.785 23⁄4 2.750 2.662 3.175 3.035 15⁄32 1.196 1.054
17⁄8 1.912 215⁄16 2.938 2.844 3.392 3.242 11⁄4 1.276 1.130
2 2.039 31⁄8 3.125 3.025 3.608 3.449 111⁄32 1.388 1.175
21⁄4 2.305 31⁄2 3.500 3.388 4.041 3.862 11⁄2 1.548 1.327
21⁄2 2.559 37⁄8 3.875 3.750 4.474 4.275 121⁄32 1.708 1.479

Dimensions per ASME B18.2.1
