Inch series · technical reference

Button Head Socket Cap Screw Dimensions

Reference dimensions for hexagon socket button head cap screws. This chart covers the ASME B18.3 inch-series form, not a generic pan-head or low-profile substitute.

Source: ASME B18.3 record in U.S. DoD ASSIST.

StandardASME B18.3.3A · Inch Series
RevisionSource review · 2026-08
Unitsinches
CAD ORTHOGRAPHIC REFERENCEASME B18.3.3A · INCH SERIES REFERENCE
ASME B18.3.3A button head socket cap screw dimension drawing, side view with dimension callouts, 1/4-20 UNC reference size
SIDE VIEW · LENGTH REFERENCE · 1/4-20 UNC
ASME B18.3.3A button head socket cap screw dimension drawing, end view showing hex socket and button head diameter, 1/4-20 UNC reference size
END VIEW · HEAD / DRIVE · 1/4-20 UNC

Reference size shown: 1/4-20 UNC. The drawing identifies dimension locations only. Use the table for nominal data and confirm the exact product configuration before ordering.

Reference head dimensions · inch series
Nominal threadUNC / UNF (TPI)Head diameter (A) max / minHead height (H) max / minHex key (J)Key engagement min (T)
#256 / 640.164 / 0.1540.046 / 0.0380.0500.028
#348 / 560.188 / 0.1760.052 / 0.0441/160.035
#440 / 480.213 / 0.2010.059 / 0.0511/160.035
#632 / 400.262 / 0.2500.073 / 0.0635/640.044
#832 / 360.312 / 0.2980.087 / 0.0773/320.052
#1024 / 320.361 / 0.3470.101 / 0.0911/80.070
1/4 in20 / 280.437 / 0.4190.132 / 0.1225/320.087
5/16 in18 / 240.547 / 0.5270.166 / 0.1523/160.105
3/8 in16 / 240.656 / 0.6360.199 / 0.1857/320.122
1/2 in13 / 200.875 / 0.8510.265 / 0.2455/160.175
5/8 in11 / 181.000 / 0.9700.331 / 0.3113/80.210

From the catalog

Related products in the catalog

Browse Button Head Socket Cap Screws and confirm the head style, drive, thread and size against this reference.

View all

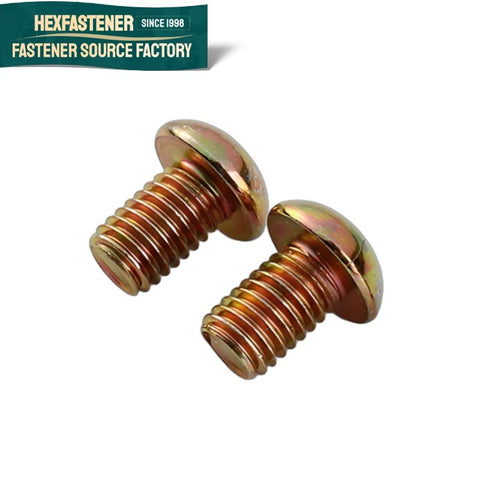

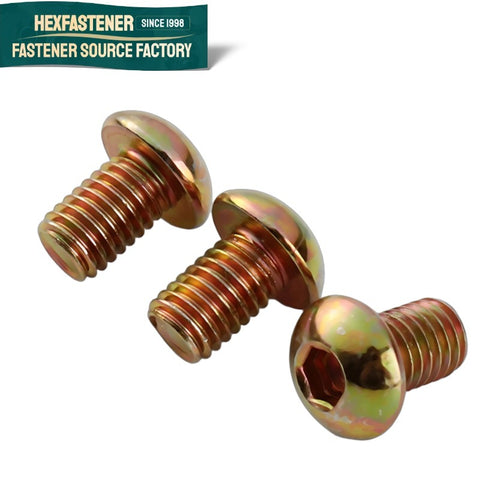

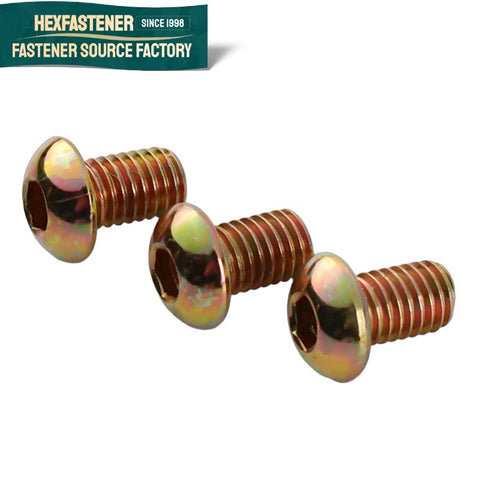

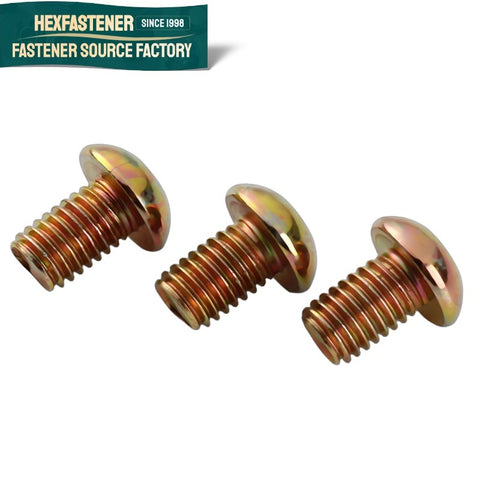

Round Head Allen Screws Carbon Steel 8.8 Grade Yellow Zinc Chromate UNC UNF ASME B18.6.3 Button Head Socket Fasteners Heavy Duty Round Head Allen Screws Carbon Steel 8.8 Grade Yellow Zinc Chromate UNC UNF ASME B18.6.3 Button Head Socket Fasteners Heavy Duty View Product Round Head Allen Socket Cap Screws Carbon Steel Yellow Zinc Plated Finish UNC UNF Class 2A ASME B18.6.3 Imperial Inch Threads Round Head Allen Socket Cap Screws Carbon Steel Yellow Zinc Plated Finish UNC UNF Class 2A ASME B18.6.3 Imperial Inch Threads View Product Dome Head Socket Screws Carbon Steel Gold Zinc Plated UNC Thread ASME B18.6.3 Round Head Allen Bolts Yellow Chromate Finished Dome Head Socket Screws Carbon Steel Gold Zinc Plated UNC Thread ASME B18.6.3 Round Head Allen Bolts Yellow Chromate Finished View Product Round Head Allen Socket Screws Carbon Steel Yellow Zinc Plated UNC UNF ASME B18.6.3 Button Head Cap Screws Round Head Allen Socket Screws Carbon Steel Yellow Zinc Plated UNC UNF ASME B18.6.3 Button Head Cap Screws View Product
