Inch series · technical reference
Flat Head Socket Cap Screw Dimensions
Reference dimensions for the 82° hexagon socket flat countersunk head cap screw form. This is an inch-series ASME B18.3 chart, not the 90° metric ISO 10642 form.
Source: ASME B18.3 record in U.S. DoD ASSIST.
CAD ORTHOGRAPHIC REFERENCEASME B18.3.2 · INCH SERIES REFERENCE
Reference size shown: 1/4-20 UNC. The drawing identifies dimension locations only. Use the table for nominal data and confirm the exact product configuration before ordering.
| Nominal thread | UNC / UNF (TPI) | Head diameter (A) sharp max / abs min | Head height ref (H) | Hex key (J) | Key engagement min (T) |
|---|---|---|---|---|---|
| #4 | 40 / 48 | 0.255 / 0.218 | 0.083 | 1/16 | 0.055 |
| #5 | 40 / 44 | 0.281 / 0.240 | 0.090 | 5/64 | 0.061 |
| #6 | 32 / 40 | 0.307 / 0.263 | 0.097 | 5/64 | 0.066 |
| #8 | 32 / 36 | 0.359 / 0.311 | 0.112 | 3/32 | 0.076 |
| #10 | 24 / 32 | 0.411 / 0.359 | 0.127 | 1/8 | 0.087 |
| 1/4 in | 20 / 28 | 0.531 / 0.480 | 0.161 | 5/32 | 0.111 |
| 5/16 in | 18 / 24 | 0.656 / 0.600 | 0.198 | 3/16 | 0.135 |
| 3/8 in | 16 / 24 | 0.781 / 0.720 | 0.234 | 7/32 | 0.159 |
| 1/2 in | 13 / 20 | 0.938 / 0.872 | 0.251 | 5/16 | 0.172 |
| 5/8 in | 11 / 18 | 1.188 / 1.112 | 0.324 | 3/8 | 0.220 |
| 3/4 in | 10 / 16 | 1.438 / 1.355 | 0.396 | 1/2 | 0.220 |
From the catalog
Related products in the catalog
Browse Flat Head Socket Cap Screws and confirm the head style, drive, thread and size against this reference.

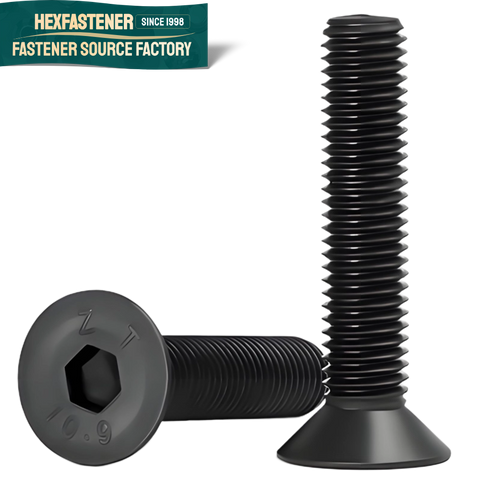

Steel Flat Head Socket Cap Screw Grade 10.9 UNC Black Oxide
View Product

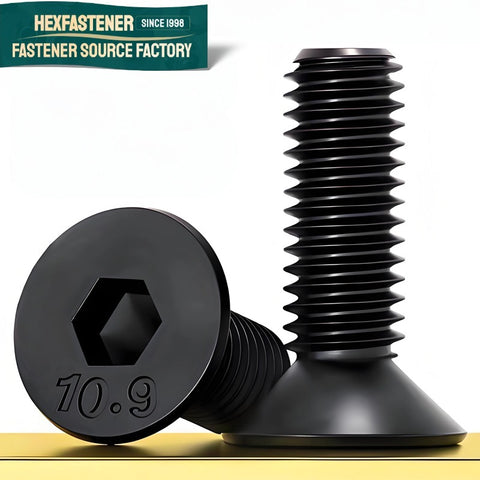

Grade 8 Equivalent 40CrMo Flat Head Socket Cap Screw UNC Black Oxide ASME
View Product
Asme Unc Head Hexagon Socket Screw Machine Bolt Flat Head Hexagon Screws Brass H62
View Product

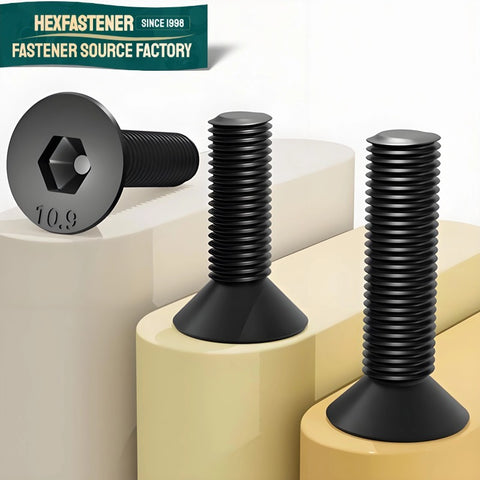

ASTM A193 B7 FHSC UNC Black Oxide ASME B18.3 High Tensile
