The short answer: titanium fasteners are chosen when low weight, corrosion resistance or strength-to-weight ratio justifies a higher material and manufacturing cost. Grade 2 is the usual corrosion-focused, commercially pure option; Grade 5 is the familiar high-strength alloy. Other grades solve more specific problems. The word “titanium” alone is therefore no more complete a specification than “steel.”
What makes titanium different?
Titanium sits between lightweight metals and conventional steels in a useful way. Its density is about 4.5 g/cm³, so a titanium part is roughly 40% lighter than the same-volume steel part. It is not lighter than aluminium, but the stronger titanium alloys can carry much higher stress. This combination—not low density by itself—is what gives Grade 5 titanium its reputation in aerospace and performance engineering.[3]
Corrosion behaviour is the other major attraction. A thin oxide film forms naturally on titanium and reforms when oxygen and moisture are available. That passive layer gives titanium excellent resistance in seawater, marine atmospheres and many oxidising chloride environments. It is more accurate to say titanium passivates well than to say it “never rusts”: hot concentrated chlorides, tight crevices and strongly reducing chemicals still require a grade-specific review.[4]
| Material characteristic | What it offers | What it does not guarantee |
|---|---|---|
| Density around 4.5 g/cm³ | Substantial weight saving compared with steel | The joint is automatically smaller or cheaper |
| Stable passive oxide film | Strong corrosion resistance in many marine and chemical environments | Immunity in every acid, crevice or high-temperature chloride |
| High strength in alloys such as Grade 5 | Useful clamp load at relatively low mass | Every titanium grade is high strength |
| Lower elastic modulus than steel | More elastic extension at the same geometry and stress | Automatic resistance to loosening or a universal torque value |
The titanium grades most buyers encounter
Titanium grade numbers are alloy identifiers, not a strength ladder. Grades 1 to 4 are commercially pure titanium with different controlled interstitial content. Grade 5 is a separate alloy system, while Grades 7 and 23 modify established grades for particular corrosion or toughness requirements.
| Grade | UNS / common description | Main reason to specify it | Fastener context |
|---|---|---|---|
| Grade 2 | R50400, commercially pure titanium | Balanced corrosion resistance, ductility and formability | Moderately loaded marine and chemical-processing hardware |
| Grade 5 | R56400, Ti-6Al-4V | High strength-to-weight ratio and useful fatigue performance | Aerospace, motorsport and highly loaded lightweight assemblies |
| Grade 7 | R52400, commercially pure titanium with palladium | Improved resistance in certain reducing or crevice-corrosion conditions | Special chemical-process service after compatibility review |
| Grade 23 | R56407, Ti-6Al-4V ELI | Lower interstitial content and enhanced fracture-toughness control | Critical aerospace or medical-equipment specifications; not a default substitute for Grade 5 |
ASTM B348/B348M identifies these alloys for bar and billet. It does not, by itself, define all requirements for a finished bolt or screw. The product form, condition, fastener specification and lot tests still belong on the order.[1]
Why use titanium fasteners?
Weight reduction that still carries useful load
Replacing a steel fastener with titanium reduces component mass because the density is lower. Grade 5 makes that trade particularly attractive where the fastener must also carry significant load. The saving matters most when many fasteners are used, rotating or reciprocating mass is involved, or every kilogram affects operating cost.
Corrosion resistance without a sacrificial coating

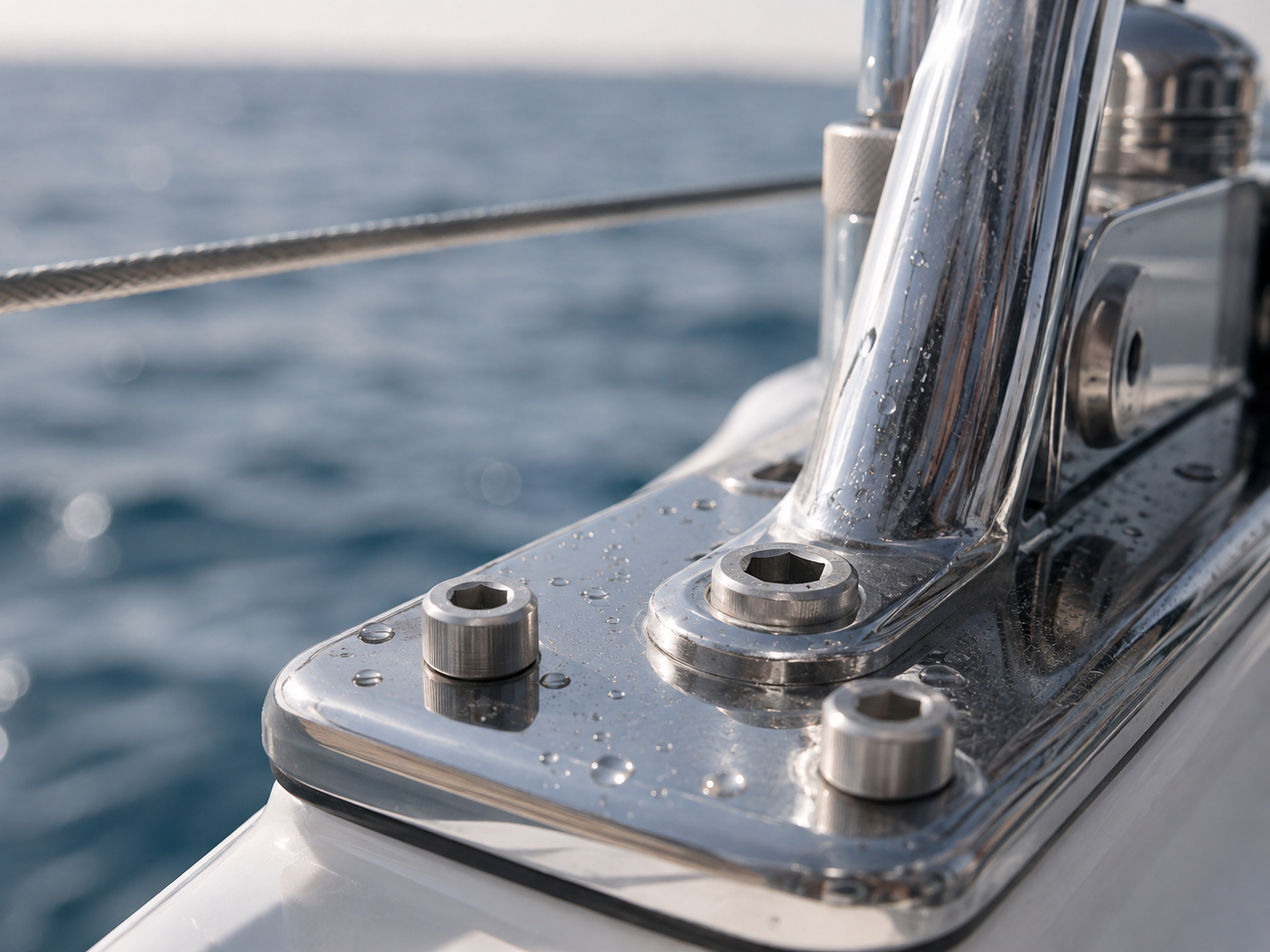

In a suitable environment, titanium does not depend on a zinc coating for protection. That can remove coating-maintenance concerns and reduce the risk of red corrosion products contaminating the assembly. Marine hardware, chemical equipment and outdoor systems are common beneficiaries, provided the mating metals and actual chemistry have been reviewed.
Long service life in demanding locations
A fastener that is expensive at purchase may still be economical when access is difficult, downtime is costly or coating replacement is impractical. Titanium makes sense when its properties remove a real maintenance or mass penalty. It is usually poor value when an ordinary coated-steel or stainless fastener already meets the requirement.
Where titanium fasteners are commonly used
| Application | What titanium contributes | Usual starting point |
|---|---|---|
| Aerospace structures and equipment | High strength-to-weight ratio and corrosion resistance | Grade 5 or a programme-specific aerospace alloy/specification |
| Motorsport and performance vehicles | Lower mass in highly loaded assemblies | Grade 5, with verified geometry and tightening procedure |
| Marine and offshore hardware | Resistance to seawater and marine atmosphere | Grade 2 or Grade 5, depending on load; check galvanic isolation |
| Chemical-processing equipment | Resistance to selected chlorides and process fluids | Grade 2 or a corrosion-specific grade such as Grade 7 |
| Medical and laboratory equipment | Corrosion resistance, low mass and controlled material chemistry | Only the grade and product specification approved for the equipment |
The limitations are part of the selection
- Cost and availability: titanium feedstock, machining and traceability cost more than ordinary steel. Non-standard sizes and grades may also have longer lead times.
- Galling: titanium threads can seize through adhesive wear, especially in an unlubricated titanium-on-titanium pair. A compatible lubricant, coating or mating material and a validated tightening procedure may be necessary.[6]
- Torque uncertainty: coating, lubricant and thread condition strongly affect torque–tension behaviour. A steel torque chart should not be reused.
- Galvanic corrosion: passive titanium is noble and can accelerate corrosion of wet aluminium, magnesium, zinc or carbon steel connected to it. Isolation, sealing and area ratio need review.
- Lower stiffness than steel: greater elastic stretch can help a properly designed joint, but bearing pressure, thread strength and joint separation must still be checked.
- Manufacturing difficulty: poor thermal conductivity keeps heat near the cutting edge. Sharp tools, rigid setups and controlled processes matter for machined threads and heads.[4]
Titanium, stainless steel or alloy steel?
| Primary requirement | Material to consider first | Reason |
|---|---|---|
| Lowest cost with high clamp load | Heat-treated alloy steel with a suitable coating | High strength, wide availability and established standards |
| General corrosion resistance at moderate cost | 304 or 316 stainless steel | Broad availability and simpler sourcing |
| Maximum strength-to-weight benefit | Grade 5 titanium | High mechanical strength at roughly 4.43 g/cm³ density[5] |
| Marine or chemical corrosion with moderate load | Grade 2 or a corrosion-specific titanium grade | Strong passive-film performance, subject to the exact environment |
No row is a direct substitution rule. A material change also changes stiffness, friction, bearing behaviour, thread strength, galvanic compatibility and inspection requirements.
How to specify a titanium fastener
A useful RFQ goes beyond “titanium bolt.” Include:
- Exact grade and UNS designation
- Material and finished-fastener specification; ASTM F468 where its inch-series scope applies[2]
- Fastener type, dimensional standard, thread size and class
- Condition, heat treatment and manufacturing route when controlled
- Required finished-part mechanical tests and inspection certificate
- Surface finish, lubricant or anti-galling treatment
- Mating material, service chemistry, temperature and immersion condition
- Installation method, reuse policy and traceability requirement
Our titanium fastener range covers common bolts and socket screws. For non-standard geometry or a controlled material specification, send the drawing and service conditions so feasibility can be checked before quotation.
Ready for the next level? Continue with Choosing Grade 2 or Grade 5 Titanium Fasteners. It goes deeper into representative strength values, joint stiffness, corrosion boundaries, galvanic area effects, galling control and manufacturing. When the grade is settled, Installing Titanium Fasteners: Torque, Galling and Preload Control covers what happens on the wrench.
References
- ASTM International — ASTM B348/B348M-25, titanium and titanium-alloy bars and billets.
- ASTM International — ASTM F468-23, nonferrous bolts, cap screws and studs.
- TIMET — Titanium Alloy Guide.
- TIMET — Titanium Design and Fabrication Handbook.
- ATI — Ti-6Al-4V technical data sheet.
- NASA TM X-53442 — Mechanical Fastening of Titanium and Its Alloys (Battelle Memorial Institute, 1966).
