Inch series · controlled reference

Cross-Recessed Flat Head Screw Dimensions

Complete nominal-size table from U.S. DoD detail sheet MS51960D for 300-series corrosion-resistant, 82° cross-recessed flat head machine screws. The sheet covers 0.060 through 0.750 in, UNF-2A.

Source: U.S. DoD MS51960D, Table I; its current DoD validation record is dated 21 April 2026.

StandardMS51960D · UNF-2A · DoD active record
RevisionPrimary-source review · 2026-09
Unitsinches
CAD ORTHOGRAPHIC REFERENCEMS51960D · INCH SERIES REFERENCE
MS51960D cross-recessed flat countersunk head machine screw dimension drawing, side view with dimension callouts, 1/4-28 UNF reference size
SIDE VIEW · LENGTH REFERENCE · 1/4-28 UNF
MS51960D cross-recessed flat countersunk head machine screw dimension drawing, end view showing Phillips cross recess and countersunk head diameter, 1/4-28 UNF reference size
END VIEW · HEAD / DRIVE · 1/4-28 UNF

Reference size shown: 1/4-28 UNF. The drawing identifies dimension locations only. Use the table for nominal data and confirm the exact product configuration before ordering.

MS51960D Table I — complete nominal-size range
Nominal sizeTPI · UNF-2AA — head Ø max / min sharpH ref / H1 undercut max–minDriver size
0.060 in800.119 / 0.1050.035 ref / 0.025–0.018#0
0.086 in640.172 / 0.1560.051 ref / 0.036–0.028#1
0.112 in480.225 / 0.2070.067 ref / 0.047–0.038#1
0.138 in400.279 / 0.2570.083 ref / 0.059–0.048#2
0.164 in360.332 / 0.3080.100 ref / 0.070–0.058#2
0.190 in320.385 / 0.3590.116 ref / 0.081–0.068#2
0.250 in280.507 / 0.4770.153 ref / 0.107–0.092#3
0.3125 in240.635 / 0.6000.191 ref / 0.134–0.116#4
0.375 in240.762 / 0.7220.230 ref / 0.161–0.140#4
0.4375 in200.812 / 0.7670.223 ref / 0.156–0.133#4
0.500 in200.875 / 0.8310.223 ref / 0.156–0.130#4
0.5625 in181.000 / 0.9500.260 ref / 0.182–0.153#4
0.625 in181.125 / 1.0690.298 ref / 0.208–0.176#5
0.750 in161.375 / 1.3060.372 ref / 0.260–0.223#5

Drawing is an original dimension-location illustration, not a manufacturing drawing. Confirm the full MS51960 designation, material, drive, length, finish and dash number before release or installation.

Request a drawingBrowse machine screws

From the catalog

Related products in the catalog

Browse Pan Head Phillips Machine Screws and confirm the head style, drive, thread and size against this reference.

View all

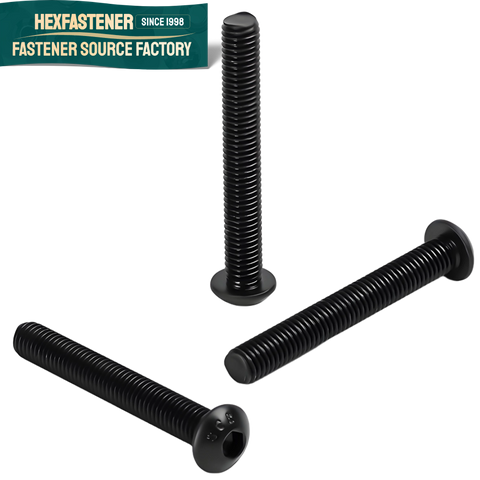

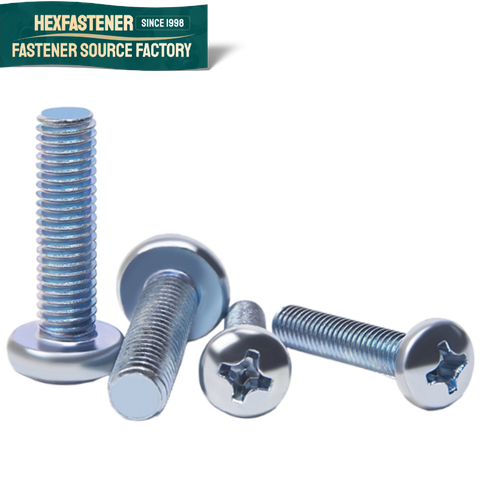

Black Oxide Steel Round Pan Head Socket Screws Imperial UNC UNF Sizes Rounded Head Screw Black Oxide Steel Round Pan Head Socket Screws Imperial UNC UNF Sizes Rounded Head Screw View Product Pan Head Socket Screws Carbon Steel Zinc Plated Golden Color UNC UNF ASME B18.6.3 Round Head Allen Fasteners 8.8 Grade Pan Head Socket Screws Carbon Steel Zinc Plated Golden Color UNC UNF ASME B18.6.3 Round Head Allen Fasteners 8.8 Grade View Product Asme Unc INCH Unf 8#M3 Brass H59 H62 Cross Recess Hexagon Pan Head Machine Screw Asme Unc INCH Unf 8#M3 Brass H59 H62 Cross Recess Hexagon Pan Head Machine Screw View Product Asme4#-40 Zinc Plated Cross Recessed Pan Head Screw UNC Round Head Cross Recessed Machine Bolts Asme4#-40 Zinc Plated Cross Recessed Pan Head Screw UNC Round Head Cross Recessed Machine Bolts View Product
