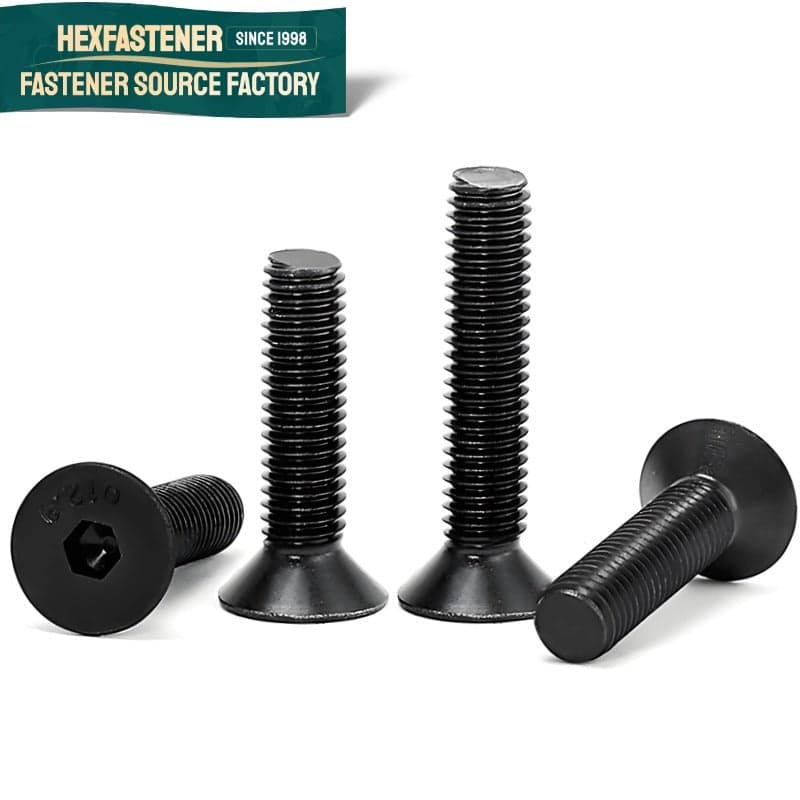

Alloy Steel Flat Countersunk Head Hex Socket Cap Scr UNC Black Oxide

Flat Head Socket Cap Screw manufactured in Alloy Steel for industrial fastening applications. Choose a size and length below, then send your quantity and documentation requirements for quotation.

Material: Alloy Steel
Thread series: UNC
Finish: Black Oxide
Drive: Hex Socket

Quoted to orderSend one complete specification.

Size · length · quantity · finish · delivery target

Nominal thread

Length

Quantity

SKU FHCS-ALY-G109-UNC-1-4-20X1

Request a Quote Send Drawing

Catalog recordHF-P0030-UNC

Thread systemUNC

Configurations12

Supply modeMade to specification

Sizes & configurations

Choose diameter and length.

Browse the listed sizes. Where no length is listed, include the required overall length with your RFQ. Thread details and dimensions are confirmed during quotation.

Nominal threadRecorded lengthsRows

1/4-201/4 · 20 TPI

1 in2 in2-1/2 in3 in4 in5 in

1/2-131/2 · 13 TPI

1 in2 in2-1/2 in3 in4 in5 in

Need a size not shown? Send the standard, thread designation and drawing. Custom and non-standard configurations are reviewed individually.

Technical dossier

Specification at a glance.

Use these specifications for product selection. Final tolerances, dimensions and inspection requirements are confirmed before production.

Product code: HF-P0030-UNC
Product type: Flat Head Socket Cap Screw
Material: Alloy Steel
Grade / class: Grade 10.9
Finish: Black Oxide
Thread series: UNC
Drive type: Hex Socket

Engineering review before quotation

Specify it once. Quote it correctly.

Send the size, length, quantity and any drawing or inspection requirement. We will confirm manufacturability, MOQ and lead time before you commit.

Request a Quote Send Drawing
