The short answer: UNC has fewer, deeper threads per inch and is the practical default for general assembly. UNF has a smaller pitch and a larger tensile stress area at the same nominal diameter, so it is useful where fine adjustment, a thinner wall or a little more tensile capacity matters. Neither series is automatically “stronger” in every joint, and UNF is not a substitute for a locking feature.
UNC and UNF describe pitch, not quality

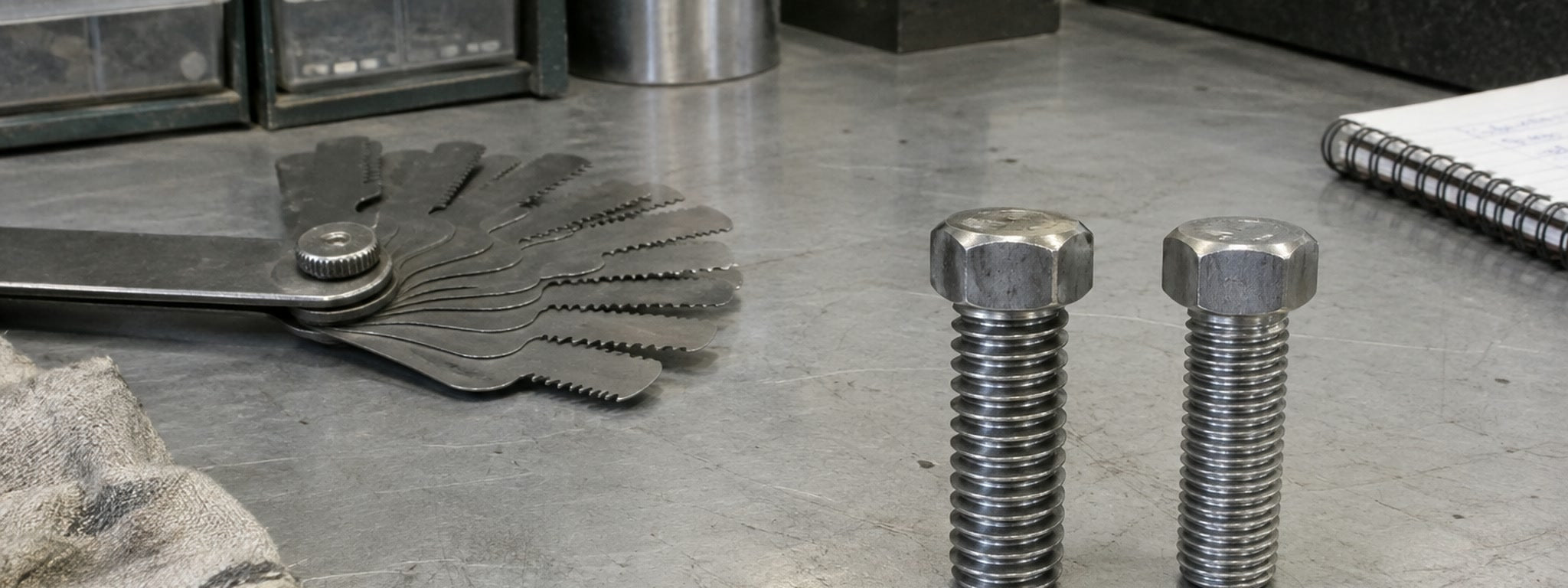

Both belong to the Unified inch thread system defined by ASME B1.1. UNC means Unified National Coarse; UNF means Unified National Fine. The nominal diameter can be identical while the number of threads per inch changes. A 1/2-13 UNC fastener and a 1/2-20 UNF fastener are both nominally half an inch in diameter, but their threads cannot mate.
| Feature | UNC | UNF |
|---|---|---|
| Pitch | Coarser; fewer threads per inch | Finer; more threads per inch |
| Thread depth | Deeper | Shallower |
| Minor diameter and tensile stress area | Smaller at the same nominal diameter | Larger at the same nominal diameter |
| Assembly | Faster to start and run down; more tolerant of dirt and minor damage | Slower engagement; easier to cross-thread if alignment is poor |
| Adjustment | More axial movement per turn | Finer axial adjustment per turn |
| Typical use | General equipment, construction and field assembly | Aerospace, automotive and compact joints where fine pitch adds value |
How much tensile area does UNF add?
A finer pitch leaves a larger thread root diameter, which increases the tensile stress area of the externally threaded fastener. For common sizes, the difference is noticeable but not dramatic:
| Nominal size | UNC stress area | UNF stress area | UNF increase |
|---|---|---|---|
| 1/4 in | 1/4-20: 0.0318 in² | 1/4-28: 0.0364 in² | About 14% |
| 3/8 in | 3/8-16: 0.0775 in² | 3/8-24: 0.0878 in² | About 13% |
| 1/2 in | 1/2-13: 0.1419 in² | 1/2-20: 0.1599 in² | About 13% |
These are standard tensile stress areas used for comparison. They are not allowable loads. The fastener material, property grade, temperature, fatigue duty and safety factor still control the design.[1]
Bolt tension and thread stripping are different checks
The larger stress area is why UNF can carry a higher axial load before the bolt section reaches the same stress. A threaded joint can still fail first by stripping the internal or external threads. That calculation depends on both materials, the pitch diameter and the effective length of engagement—not simply on how many threads are visible.
In a strong steel nut paired with a compatible bolt, standard nut geometry is designed around the fastener system. A tapped hole in aluminium, cast iron, brass or plastic is a different problem. Softer parent material may need more engagement, an insert or a larger diameter. Coarse threads are often more practical in lower-strength or damage-prone materials because their deeper form is more tolerant, but “coarse is always stronger in soft material” is not a universal design rule.
Does UNF resist vibration better?
Fine threads have a smaller helix angle and provide finer control of axial movement during tightening. Those features can help in a well-designed joint, but they do not make UNF self-locking. Loss of preload, joint slip, embedment and transverse movement are usually more important than pitch alone.
If loosening matters, start with sufficient clamp load and joint stiffness, then specify the appropriate prevailing-torque nut, adhesive, mechanical lock or other validated retention method. Do not change UNC to UNF and consider the vibration problem solved.
Which thread should you choose?
| Application condition | Better starting point | Why |
|---|---|---|
| General-purpose assembly or frequent field service | UNC | Quick engagement and better tolerance of handling damage, dirt and plating buildup |
| Fine positional or preload adjustment | UNF | Less axial travel per turn |
| Limited wall thickness | UNF or UNEF, after thread-strength verification | More engaged threads in a short axial distance |
| Slightly higher tensile capacity at the same diameter | UNF | Larger tensile stress area |
| Dirty, corroded or repeatedly assembled service | Often UNC | Deeper, more damage-tolerant thread form |
| A mating part already exists | Match its complete callout | Diameter alone does not establish compatibility |
Read the whole callout: 1/4-20 UNC-2A means 1/4-inch nominal diameter, 20 threads per inch, UNC series, class 2 external thread. The normal mating internal thread is class 2B. Diameter, pitch, series and class all belong on the drawing.
What to put on the RFQ
- Complete thread callout, including UNC or UNF and the class of fit
- Fastener type, dimensional standard, material and mechanical grade
- Coating or finish, especially if thread allowance is limited
- Mating material and required thread engagement for tapped holes
- Required locking method, installation torque or clamp-load test
- Gauging and inspection standard
Choosing the fastener strength next? Read Bolt Grades 8.8, 10.9 and 12.9: What the Numbers Really Mean to understand the property-class code—and why it does not provide a torque value on its own.
References
- ASME — ASME B1.1, Unified Inch Screw Threads.
- NASA Reference Publication 1228 — Fastener Design Manual.
